VRWave 0.9

Quite some time ago a reader, a fellow named Paulo, had sent me email asking if I had taken a look at VRWave yet.  This is a VRML 2.0 browser available from the Institute for Information Processing and Computer Supported New Media (IICM), GrazUniversity of Technology, Austria.  The program is freely available for private use and includes source code.  The current version, 0.9, includes a Java-based port of the code, although all rendering code is still in C using either OpenGL or Mesa.

Looking through my backlog of things to do for the Muse, I decided to take a look at VRWave.  At a minimum I wanted to see if I could simply get it to run.  Hopefully, I would be able to say something intelligent about the source code and build environment as well.  I jumped on the Internet and went off to grab a copy of the package from a US mirror of the VRWave Home Page (http://www.iicm.edu/vrwave).  The first thing I noticed was that there were both source and binary distributions available.  The binary distributions cover a few flavors of Unix, including ports for Linux 2.0.  There are actually two versions of the binary distribution - a Java 1.1.3 based version and a Mesa version which uses Java 1.0.2.  These are actually the platform specific libraries needed by VRWave.  I grabbed both along with the gzipped Common tar file which must accompany any binary version that is downloaded.   The Mesa version is not compiled with any of the hardware accelerated drivers available for Mesa.  If you want to use those drivers you need to recompile the source with the Mesa package properly built with the drivers of interest.  Also, the Mesa code is statically linked into the platform specific libraries, so you shouldn't need any other libraries or files outside of those contained in the  Common tar file and the platform specific tar file.

The directions say to unpack the Common file first, then cd into the vrwave-0.9 directory this process creates and unpack the platform specific files.  The first time I did this I didn't do it in the right order and got myself confused.  So I redid the unpacking, following the directions.  Its true - men never read the directions.  The instructructions in the INSTALLATION file for running VRWave are quite complete so I won't rehash them here.  Just be sure you actually read the file!  In my environment I use Java 1.0.2, the default installation of Java on Red Hat 4.2, so I set my CPU environment variable to LINUX_ELF.  You may need to set it to LINUX_J113 if you have the Java 1.1.3 package installed on your system.

Once you set up a couple of environment variables you're ready to start vrwave.  Since VRWave uses your Java runtime environment, be sure your CLASSPATH is set correctly first.  On my Red Hat 4.2 system I have it set as follows:

Type vrwave and the interface opens a window.  On my system I got messages like the following:

java.lang.InternalError: unsupported screen depth
VRwave: could not load icons at /home/mjhammel/src/graphics/vrwave2/vrwave-0.9/icons.gif
VRwave: could not load logo at /home/mjhammel/src/graphics/vrwave2/vrwave-0.9/logo.gif
java.lang.InternalError: unsupported screen depth
        at sun.awt.image.ImageRepresentation.setPixels(ImageRepresentation.java:170)
        at sun.awt.image.InputStreamImageSource.setPixels(InputStreamImageSource.java:459)
        at sun.awt.image.GifImageDecoder.sendPixels(GifImageDecoder.java:243)
        at sun.awt.image.GifImageDecoder.readImage(GifImageDecoder.java:295)
        at sun.awt.image.GifImageDecoder.produceImage(GifImageDecoder.java:155)
        at sun.awt.image.InputStreamImageSource.doFetch(InputStreamImageSource.java:215)
        at sun.awt.image.ImageFetcher.run(ImageFetcher.java:98)
        at sun.awt.image.ImageRepresentation.setPixels(ImageRepresentation.java:170)
        at sun.awt.image.InputStreamImageSource.setPixels(InputStreamImageSource.java:459)
        at sun.awt.image.GifImageDecoder.sendPixels(GifImageDecoder.java:243)
        at sun.awt.image.GifImageDecoder.readImage(GifImageDecoder.java:295)
        at sun.awt.image.GifImageDecoder.produceImage(GifImageDecoder.java:155)
        at sun.awt.image.InputStreamImageSource.doFetch(InputStreamImageSource.java:215)
        at sun.awt.image.ImageFetcher.run(ImageFetcher.java:98)

These may be due to either an incorrect Java configuration on my system or because the Java 1.0.2 libraries do not support the TrueColor (24 bit depth) visual I'm running with my X server.  In either case it didn't seem to matter, as the window opened and I was able to begin playing with VRWave.  Also, during all my experimentation I had no display or color problems at all.

The first thing I should say at this point is that I know very little about VRML other than its a language for describing navigable 3D worlds.  VRML 2.0 includes features such as spatial sound, where the sound of an object in the distance can grow louder as the object is moved closer.  To my knowledge VRWave does not yet support sounds, but I didn't test any VRML worlds in which sound was availalble.  In any case, what I'll describe here is what an casual user might encounter, what someone who is just beginning to explore VRML might find interesting and useful.   Also please note that the slight blur in the images is due to reducing them from the screen captures in order to fit the image in a 640 pixel wide Web browser.

The interface

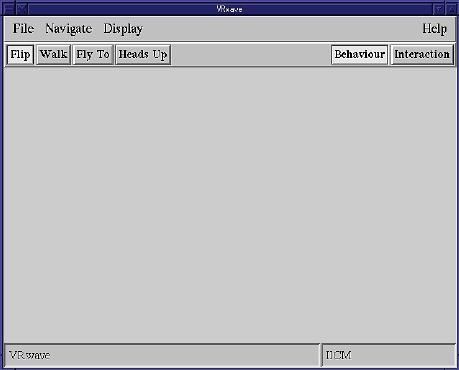

The image above show the initial window if no input file is provided on the command line.  You can specify any VRML file as an input file.  These carry the .wrl extension in the file name and you can find numerous example in the examples directory in the distribution.   Scene files are ordinary text files, not unlike the POV-Ray programming language in a sense.  The look like the sample code below, which is the code for the convexify.wrl example:



The following table summarizes most of the features in the VRWave main window:


Window Feature Description
File  Basic file input/output functions, plus camera information.
Navigate  Set mode for movement through VRML world; reset and align functions for current view.
Display  Lighting, rendering (static and interative) methods, colors, background, transparency, etc.
Help  HTML based help system that relies on Netscape.  Netscape must be in your path for this to function properly.
Flip Navigation mode;  Scene translation around origin and zoom.
Walk Navigation mode;  move forward, backwards, sideways pan and move "eyes".
Fly To Navigation mode;  sets a Point of Interest from which all other movements in this mode are relative.
Heads Up Places a "heads up display" in the center of the viewing area;  3 navigation types in display:  eyes, body and pan.  These correspond to the same types of movements that Walk provides but gives visual cues to movement settings.
Behaviour Purpose unknown
Interaction Purpose unknown


Navigation

In the following example, the sample scene examples/office2.wrl was opened (File->Open) into the default window (ie the window was not resized or adjusted in any way).  To move around this scene you can use the mouse or keyboard.  Keyboard bindings are described in the help/mouse.html file, which will also give you a little more information about what kind of movements within a scene are available.

An example of movement through this scene would be to hold down the middle mouse button (with the Flip button pressed as it is in the example image below) and drag it around the viewing area.  This would rotate the entire room and its contents around the origin, which is positioned, but not visible, in the middle of the viewing area.  When this movement is started the image will change to a wireframe view to speed processing.  The use of wireframe, flat shaded, smooth shaded and textured objects during navigation and static display (when you aren't moving the scene around) can be controlled from the Display option in the menu bar.

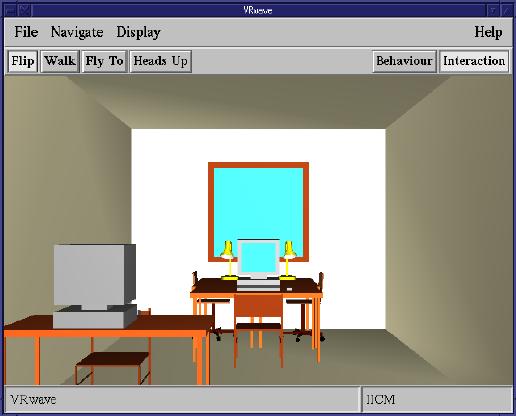

examples/office2.wrl example scene

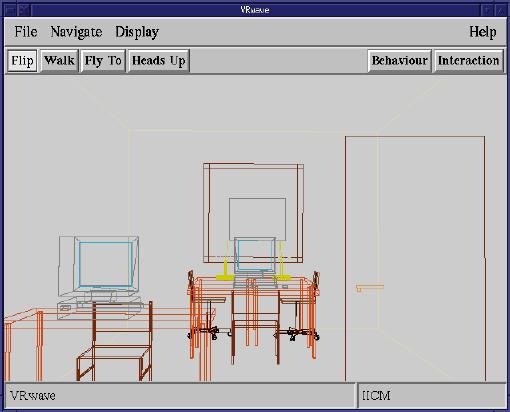

examples/office2.wrl example scene in wireframe mode

This scene is probably the nicest image, asthetically speaking, of all the examples.  The image fills the viewable area and is a complete room.  If you navigate around the room you quickly learn that the walls to the room disappear if you're viewing area would be blocked by those walls  For example, tilt the room down, then rotate it to the left.  You're view of the room is now outside of the right wall, but in order to view the inside of the room the right wall is not drawn.  You can change this behaviour by using the Display->Two-sided Polygons option and setting this option "On".  The default setting, Auto, will not display the wall if it gets in your way.  Turning this option on causes the back sides of the walls to become visible, and so your view inside the room is blocked.

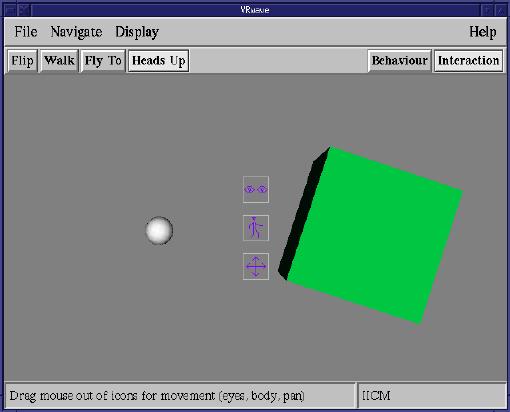

examples/sensors/touchsensor.wrl, with the Display->Background
set to gray and the Heads Up Navigation button set.

In this next example the Heads Up option is selected and you can see the three view functions displayed in the middle of the viewing area.  These small boxes don't move with the rest of the scene as you drag it around the viewing window.  They stay centered in that window.  A red line is drawn from the center of one of these boxes to the current cursor location showing direction and speed (longer lines give faster speed).

The movement of the small sphere in this image is managed through the use of the left mouse button, but only when the cursor is over the large green box.  Moving the cursor, left mouse button held down, moves the sphere around the viewing area.  If the mouse leaves the area of the box then the sphere stops moving.  Note that the area of the box does not mean just a side of the box - it means what ever region of the box is actually visible to the user.

If you have a fast enough computer and enough memory you can turn on interactive texturing.  This allows you to view the the objects in the scene with their full textures displayed while you move the scenes and objects around the viewing area.  Although I can't show this feature here, I can show you another example scene which has a texture map applied to the sides of a cube.  The first example shows the texturing on a cube with Two-sided Polygons turned off.  The next example, which is a full sized capture so you can see the details a little better, shows the same image with Two-sided Polygons turned on.

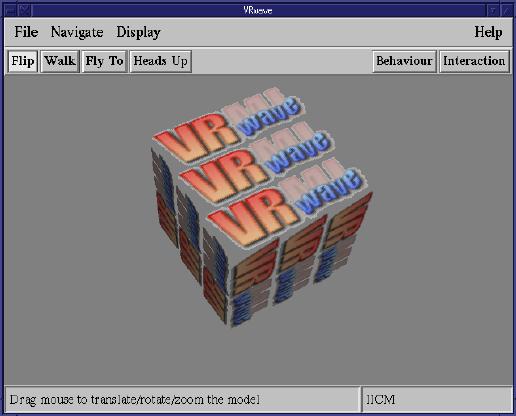

examples/isub/cube.wrl, with static texturing turned on

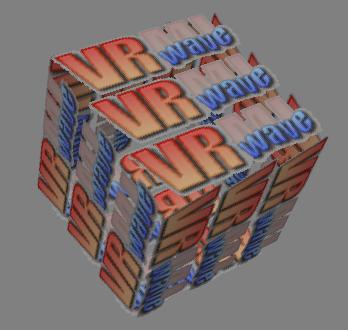

Same image, but with two sided polygons turned on so
you can see the transparent parts of the image better.

Visiting VRML 2.0 URLs

VRWave's beta Netscape plug-in does not work with Netscape 4.0 due to changes from 3.0 to 4.0 in Netscapes security code.  Since I use the 4.03 release at home I was not able to test the plug-in.  Also, since all of the VRML sites I visited used VRML embedded in HTML, and since those pages caused my 4.03 version of Netscape to crash when I tried to load them, I wasn't able to test the mime/type installation that would launch VRWave as an external viewer.  I also tried to download a newer version of Netscape, but my connection kept timing out during the download (its about 10Mb now).  This is what I get for waiting till the last few days before my deadline for this column before trying to get this all working.  Its my fault - not VRWaves.

Getting Help  and other information

There is a Help option in the menu bar at the top of the interface.  This requires that Netscape be in your path so that VRWave can launch it.  If Netscape is already running, it won't matter, since VRWave still needs to try to run Netscape first, so it still must be in your PATH before running VRWave.  I'm not sure if I prefer this or would rather see them use the NetHelp inteface for Netscape.  I think I prefer the latter, although NetHelp may not be accessible from Java (I use an Xlib based API for it).

The README file that comes with the binary distribution states that an online users guide for VRWeb (VRWave's predecessor) is available from http://www.iicm.edu/vrweb/help.  However, this link doesn't seem to work any more.  I browsed the main VRWave web site and found a link to http://www.iicm.edu/vrwave/release, which contains various online documentation.  Unfortunately, I didn't find a users guide per se.  The best  printed help available will be the help/install.html and help/mouse.html files in the runtime directories from the binary distribution.  In particular, the mouse.html file contains detailed information about mouse and keyboard bindings for scene navigation.

Compiling from source

The bad news here is that my Java development environment just doesn't seem to be working and so I can't talk intelligently about building VRWave from the source distribution.  I had my Java environment marginally working in Denver, but when I moved to Dallas I must have changed something because neither javac nor Vibe seem to be working any more.  It may be time to upgrade to Red Hat 5.0 anyway, so maybe I'll fix it then.


To Wave or not to Wave

The question remains:  is VRWave a good tool for viewing and learning about VRML?  Yes, absolutely.  Its still early in its development but the tool is very stable, it didn't crash at all on any test files I loaded (although I was only able to use the example files in the distribution).  Some things I'd like to see is a little better help system or at least one that can allow me to configure where Netscape is (since I used to upgrade often I didn't have it in my path, I have a script that knows how to find it).  The URL feature is handy but it would be nice to be able to select from a list of URLs.  Such a feature is more the realm of a browser than a VRML viewer.  I suppose it depends on which VRWave wants to be in the long run.

If you are just getting started with VRML and would just like to look at a few examples, this is a good place to start.  You will need to have a working Java environment - one that can run Java applets if not compile Java code.  Other than that, installation is a breeze and there are enough example files to keep you at least midly entertained until you can write your own VRML worlds.
