Plotting the spirograph equations with 'gnuplot'

By Víctor Luaña

Universidad de Oviedo, Departamento de Química Física y Analítica, E-33006-Oviedo, Spain.

[ The author had specifically requested that we keep the large font used in his article in order to match the font size of the equation images; I agreed, since the two would look disproportionate otherwise. My apologies to anyone whose eyeballs exploded due to the rapid decompression. :) -- Ben ]

gnuplot's internal programming capabilities are used to plot the continuous and segmented versions of the spirograph equations. The segmented version, in particular, stretches the program model and requires the emulation of internal loops and conditional sentences. As a final exercise, we will develop an extensible mini-language, mixing gawk and gnuplot programming, that lets the user combine any number of generalized spirographic patterns in a design.

A PDF version of this article is available for archiving and printing.

I. Introduction

Imagine the movement of a small circle that rolls, without slipping, on the inside of a rigid circle. Imagine now that the small circle has an arm, rigidly attached, with a plotting pen fixed at some point. That is a recipe for drawing the hypotrochoid, a member of a large family of curves including epitrochoids (the moving circle rolls on the outside of the fixed one), cycloids (the pen is on the edge of the rolling circle), and roulettes (several forms rolling on many different types of curves) in general.

The concept of wheels rolling on wheels can, in fact, be generalized to any number of embedded elements. Complex lathe engines, known as Guilloché machines, have been used since the 17th or 18th century for engraving beautiful designs onto watches, jewels, and other items of fine craftsmanship. Many sources attribute the first use of Gilloché engravings on a watch to Abraham-Louis Breguet in 1786, but the technique was already in use on jewelry. Ancient machines are still being used, and can be seen at the RGM Watch Company Web pages. Intricate Guilloché patterns are usually incorporated on bank notes and official documents to prevent forgery. The name "Spirograph" comes, actually, from the trade name of a toy invented in 1962 by Denys Fisher, a British electronic engineer, and licensed to several toy companies over the years.

Our purpose, however, is not to explore the history or even the mathematical aspects of the Spirograph decorations: our interest is centered on the techniques needed to use gnuplot as the drawing engine of the cycloid-related curves.

Section II presents a simple derivation for the hypotrochoid equations and discusses a generalization to any number of rolling wheels described by F. Farris. Section III describes the techniques required to draw the cycloid-related curves with gnuplot. From the use of complex arithmetic to the simulation of an implicit do loop and the recursive definition of user functions, gnuplot offers a large capability for the creation of algorithmic designs. The techniques discussed in Section III are embedded within a simple gawk filter that reads a formal description of a cycloid pattern and uses gnuplot to produce the final plot. The design of this filter is the subject of Section IV.

II. The hypotrochoid and some related curves

Figure 1 shows the formation of a hypotrochoid and will help us in determining the parametric equations for the curve. Three lengths determine the shape of the curve: R, the radius of the fixed circle; r, the radius of the moving circle; and p, the distance from the pen to the moving circle center. The center of the fixed circle, point O, will serve as the origin of the coordinate system. Points O' and P designate the current position of the rolling circle center and of the pen, respectively.

Formation of a hypotrochoid curve

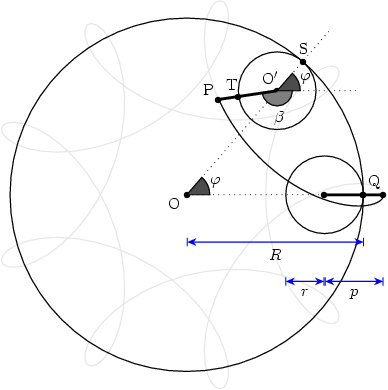

Figure 1 Geometry for the hypotrochoid equations. The grayed figure corresponds to R=9, r=2, and p=3.

The current position for O' is easily described in circular coordinates: fixed length length(OO') = (R-r) and variable angle \varphi . This is easily translated into Cartesian coordinates:

x_{OO'} = (R-r) \cos\varphi, y_{OO'} = (R-r) \sin\varphi.

Similarly, the position of the pen relative to O' is also simple to describe in circular coordinates: fixed length length(O'P) = p and variable angle 2\pi-\beta = -\beta . In Cartesian coordinates:

x_{O'P} = p \cos\beta, y_{O'P} = -p \sin\beta.

The angles \varphi and \beta are not independent, however. The circles roll without slipping. Hence, the arc arc(QS) = R\varphi on the fixed circle must be identical to the arc arc(TS) = r(\varphi+\beta) on the rolling circle. The relationship \beta = (R-r) \varphi / r follows immediately. This equation is easy to interpret in terms of a gearing mechanism. The fixed and rolling wheels must have teeth of equal size to be able to engage together. Therefore, the number of teeth must be proportional to the wheel perimeter and, equivalently, to the wheel radius.

Putting all this together, the current position of the pen relative to the fixed center O is given by \vec{r} = \vec{r}_{OP} = \vec{r}_{OO'} + \vec{r}_{O'P} , or, equivalently:

x(\varphi) = (R-r) \cos\varphi + p \cos((R-r)\varphi/r), y(\varphi) = (R-r) \sin\varphi - p \sin((R-r)\varphi/r).

The equations admit r and p being either positive or negative. A negative r would represent a moving wheel rolling on the outside, rather than the inside, of the fixed circumference. I.e., it will be a epitrochoid curve. Choosing p=r with r positive or negative will produce hypo or epicycloid curves, respectively.

It is easy to see that multiplying the three parameters R, r, and p by a common factor produces a global scaling of the curve dimensions but does not change its shape. On the other hand, the figure traced by this parametric equation closes only if R/r is a rational number. Let us assume that n and m are the smallest integers such that |R/r| = n/m, and let g be the greatest common divisor of n and m (gcd(n,m)). The curve will then close after a total rotation of m/g times 2\pi (\varphi \in [0,2m\pi] ) and it will show n/g lobes or spikes.

The equations can be generalized for three or more wheels rolling one inside the other, and Frank Farris did so in a celebrated article in Mathematics Magazine. At this level, it is better to give up a direct simulation of the physical engine gears and examine the equations directly. A very compact and powerful notation is obtained by using complex variables, with the convention that the real and imaginary parts represent the x and y Cartesian coordinates, i.e., z=x+iy where i is the imaginary number. The general Farris equations are:

z(t) = \sum_{k=1}^n a_k e^{i2\pi(n_k t+\theta_k)}, t \in [0,1],

where n is the number of engaged wheels: wheel k has its center fixed on a point of the circumference of wheel (k-1). On each wheel, a_k is related to the radius, n_k to the rotation speed, and \theta_k is an initial phase angle. Farris demonstrated that the z(t) curve has g-fold rotational symmetry if all the pairwise differences |n_k-n_j| have g as their greatest common divisor.

III. Rendering the curves in gnuplot

The two wheel parametric equations can be readily translated into the following gnuplot drawing code:

 set terminal png size 600,600 \
     x000000 xffffff x404040 xff0000
 set output "fig-spiro02.png"
 set size ratio -1
 set nokey
 set noxtics
 set noytics
 set noborder
 set parametric
 x(t)=(R-r)*cos(t) + p*cos((R-r)*t/r)
 y(t)=(R-r)*sin(t) - p*sin((R-r)*t/r)
 R=100.0; r=2.0; p=80.0
 set samples 2001
 plot [t=0:2*pi] x(t),y(t)

The code saves the image as a PNG file, useful for insertion on a Web page, but any gnuplot terminal could be used. An EPS/PDF vector file with white background is better for a printed version of the document, whereas an unscaled PNG raster file with black background may look better and render faster in a Web browser. The use of the PNG terminal is a little tricky, as there appear to be two versions that differ in the recognized syntax. If gnuplot chokes on the png size 600,600 part, try using png picsize 600 600 instead. Notice that we have removed the default axes, labels, and tics. Identical scaling of the axes has also been enforced, to avoid distortion of the image. The result can be seen in Fig. 2.

Hypotrochoid curve
Figure 2 Hypotrochoid curve for: R=100, r=2 and p=80.

A little exploration will reveal that: (a) p=0 produces a circle; (b) an ellipse results if R=2r and p≠r, its axes being (r+p) and |r-p|; (c) the hypocycloids are obtained by choosing p=r; (c) R=2r=2p gives rise to a line of length 2a; (d) negative values for p and/or r results in some extraordinary specimens.

Decorations Decorations Decorations Decorations Decorations Decorations Decorations

The beauty and diversity of the trochoid curves call for a journey of exploration and discovery. This is much easier if the gnuplot code is embedded in a text or graphical user interface (TUI vs. GUI). A simple csh script can serve as a rudimentary but effective wrapper:

#! /bin/csh
set code = $0:t
if ($#argv < 3) goto help
set n1 = $1; set n2 = $2; set n3 = $3
set a1 = 1.0; set a2 = 1.0; set a3 = 1.0
set s1 = 0.0; set s2 = 0.0; set s3 = 0.0
if ($#argv >= 4) set a1 = $4
if ($#argv >= 5) set a2 = $5
if ($#argv >= 6) set a3 = $6
if ($#argv >= 7) set s1 = $7
if ($#argv >= 8) set s2 = $8
if ($#argv >= 9) set s3 = $9

cat << EOF | gnuplot
 set size ratio -1
 set nokey
 set noxtics
 set noytics
 set noborder
 set parametric
 n1p = {0,1}*2*pi*${n1}
 n2p = {0,1}*2*pi*${n2}
 n3p = {0,1}*2*pi*${n3}
 s1p = {0,1}*2*pi*${s1}
 s2p = {0,1}*2*pi*${s2}
 s3p = {0,1}*2*pi*${s3}
 z(t) = ${a1}*exp(n1p*t+s1p) \
      + ${a2}*exp(n2p*t+s2p) \
      + ${a3}*exp(n3p*t+s3p)
 set terminal png size 600,600 x000000 \
     xffffff x404040 xff0000 xffa500 x66cdaa \
     xcdb5cd xadd8e6 x0000ff xdda0dd x9500d3
 set output "fig-spiro03.png"
 set samples 2001
 plot [t=0:1] real(z(t)),imag(z(t))

xv fig-spiro03.png

cat << EOF
USE:     $code n1 n2 n3 [a1 a2 a3 [s1 s2 s3]]
PURPOSE: Plot Farris wheels on wheels on wheels
         curve for (n1,n2,n3,a1,a2,a3,s1,s2,s3).
         Default value for a1, a2, a3: 1.0.
         Default value for s1, s2, s3: 0.0.
EXAMPLE: $code 1 7 -17 1 0.5 1.0/3 0 0 0.24

In this example, we have used Farris equations for three wheels. Complex numbers (notice the {0,1} constant, equivalent to the imaginary number, i, in gnuplot syntax) are used to evaluate the z(t) function, but their real and imaginary parts must be explicitly extracted and passed to the plot instruction. Therefore, z(t), is actually called twice for each point. Perhaps future gnuplot versions will recognize a single complex expression as a complete argument of the parametric plot. In any case, the complex arithmetic provides a very compact notation.

Three wheel pattern 03a Three wheel pattern 03b Three wheel pattern 03c
Three wheel pattern 03d Three wheel pattern 03e Three wheel pattern 03f
Figure 3 Typical patterns shown by three rolling wheels of equal size. From left to right and top to bottom: (a) [7,-5,2] palm leaf, (b) [19,-13,3] daisy flower; (c) [13,-7,-3] cross; (d) [19,17,-2] nephroid; (e) [13,-11,-3] 8-point star; (f) [11,-7,-3] Maasai shield.

The script, on the other hand, can be called with anything from 3 to 9 parameters. The three obligatory parameters are n1, n2, and n3, that adjust the relative speed of the three wheels. The next group of three are a1, a2, and a3, related to the relative size of the wheels, and a default value of 1.0 is assumed for any parameter not given in the input. The last group corresponds to the initial phase angles, s1, s2, and s3, with a default value of 0.0. The script parameters are used only within gnuplot assignments. This means that the user can enter expressions rather than single integer or real values. Some care must be taken, however, when entering fractions: use 1.0/3 and not 1/3, that would be interpreted by gnuplot as an integer division and would produce an unexpected 0.

Figure 3 represents some of the most characteristic patterns exhibited by three rolling wheels of identical size. These patterns occur when the wheel speeds, [n1,n2,n3], their differences, \Delta{n_{ij}} = n_j - n_i , and the greatest common divisor of the differences, g = \mathrm{gcd}(|\Delta{n_{ij}}|) , satisfy appropriate conditions. Large values for g produce highly symmetric and generally nice motifs. Some of the most pleasant designs, however, show only a moderate symmetry and a more subtle interplay between regularity and uniqueness.

Some trends, found by the observation of a large number of cases, can help in the design of a particular motif. Assuming that the three wheels are of equal size, differences like (-g,2g,3g) can produce g-points stars, whereas g-petal daisies tend to happen for ([+/-]2g, [+/-]g, [+/-]g) differences. Palm leaves and nephroids occur when two of the \Delta{n_{ij}} differences coincide, in absolute value, with two of the wheel speeds. Crosses and Maasai shields are rara avis that require a large number of conditions to be met: the sum of all wheel speeds must be odd (positive or negative), g must be a power of 2, and the sum of two of the differences must be equal to the third.

Changing the wheel sizes will also produce significant variations in the drawings. Adding small phase angles to one or more wheels can be used to introduce some irregularity into an otherwise too symmetric and uninteresting motif.

Decorations Decorations Decorations Decorations Decorations Decorations Decorations

The two previous examples have used the spirographic equations with a large number of sample points, large enough to show the true nature of the curves: both continuous and derivable, as they are the sums of exponential functions. The Web has plenty of simplistic Java applets that poorly render the equations by using a small number of points per roll. This method, albeit a wrong representation of the true curves, can produce quite pleasant images. In a declarative language, this type of plot would be produced using a simple loop:

   nturns = abs(rsmall) / gcd(Rbig,abs(rsmall))
   M = nturns * resolution
   inumber = {0,1}
   for (k=0; k<=M; k++) {
      ang1 = inumber * k * 2*pi/M
      ang2 = ang1 * (rsmall-Rbig)/rsmall
      z[k] = (Rbig-rsmall)*exp(ang1) + p*exp(ang2)
      if (k>0) { PLOT LINE from z[k-1] to z[k] }

where resolution holds the number of sample points used for each roll around the main (fixed) wheel and nturns is the number of times this wheel must be rolled around. The above pseudocode assumes the use of complex arithmetic and the availability of a gcd() function.

Loops and conditional expressions are not part of the gnuplot language, but there are ways around this limitation. First, an implicit loop is automatically performed on each plot instruction. We just have to be careful to fix an appropriate samples value and a correct range for the independent variable (the parametric variable, in our case). The ternary operator (a?b:c, evaluate and return b if a is true, and c otherwise) can be used as a restricted conditional test. gnuplot's user-defined functions can be recursive, on the other hand, and this can also be used as a restricted form of loop.

The next example uses all of the above ideas. Notice, in particular, the recursive definition of the gcd() function, that implements Euclid's algorithm for the greatest common divisor. The calculation of the number of turns and sample points is simplified by assuming that R and r are integers.

 set size ratio -1
 set nokey
 set noxtics
 set noytics
 set noborder
 set parametric
 x(t) = (R-r)*cos(t) + p*cos((R-r)*t/r)
 y(t) = (R-r)*sin(t) - p*sin((R-r)*t/r)
# Greatest common divisor:
 gcd(x,y) = (x%y==0 ? y : gcd(y,x%y))
 R = 100; r = -49; p = -66; res = 10
 rr = abs(r)
 nturns = rr / gcd(R,rr)
 samp = 1 + res * nturns
 set samples samp
 plot [t=0:nturns*2*pi] x(t),y(t)

Stitching rendering of a hypotrochoid curve

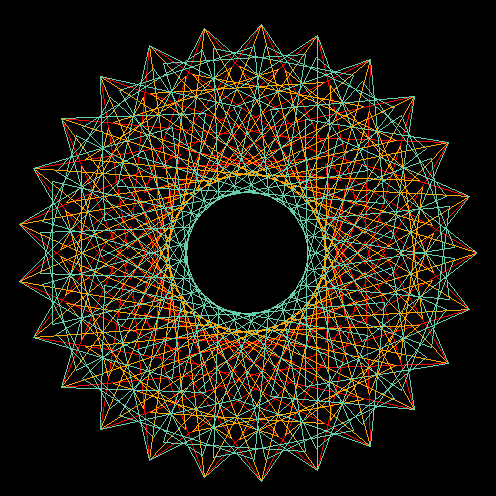

Figure 4 Curve stitching patterns from the hypotrochoid curve with: R=100, r=2 and p=70. The three patterns correspond to a resolution of 75, 125 and 175 sample points, respectively.

The last example works well for drawing a single curve with a given resolution, but the most interesting patterns are obtained by mixing several renderings of one or more curves with well chosen resolutions. To do this within a single gnuplot run, we have to take explicit control of the angles used for each equation. For instance:

 set terminal png size 600,600 x000000 \
     xffffff x404040 xff0000 xffa500 x66cdaa \
     xcdb5cd xadd8e6 x0000ff xdda0dd x9500d3
 set output "fig-spiro05.png"
 set size ratio -1
 set nokey
 set noxtics
 set noytics
 set noborder
 set parametric
# General parametric equations:
 x(t,R,r,p) = (R-r)*cos(t) + p*cos((R-r)*t/r)
 y(t,R,r,p) = (R-r)*sin(t) - p*sin((R-r)*t/r)
# Values for the dummy parameter:
 t(i,n) = i*2*pi/n
# Greatest common divisor:
 gcd(x,y) = (x%y==0 ? y : gcd(y,x%y))
# The different curves:
 R1 = 100; r1 = 2; p1 = 70; res1 =  75
 R2 = 100; r2 = 2; p2 = 70; res2 = 125
 R3 = 100; r3 = 2; p3 = 70; res3 = 175
 nseg1 = res1 * abs(r1) / gcd(R1,abs(r1))
 nseg2 = res2 * abs(r2) / gcd(R2,abs(r2))
 nseg3 = res3 * abs(r3) / gcd(R3,abs(r3))
 n12 = (nseg1 * nseg2) / gcd(nseg1,nseg2)
 nsamp = (n12 * nseg3) / gcd(n12,nseg3)
 nsamp1 = nsamp + 1
 set samples nsamp1
 plot [i=0:nsamp] \
    x(t(i,res1),R1,r1,p1),y(t(i,res1),R1,r1,p1) \
  , x(t(i,res2),R2,r2,p2),y(t(i,res2),R2,r2,p2) \
  , x(t(i,res3),R3,r3,p3),y(t(i,res3),R3,r3,p3)

The result of this code is represented in figure 4. The intricate embroidery of the three curve representations, only recognizable by their different colors, show an appealing and delicate beauty that deserves further exploration. However, using the same plot order for the three is far from being effective and poses many problems for its generalization to an arbitrary number and class of representations. In particular, the number of sample points has to be a minimum common multiple of the best number of sample points for each independent figure.

In the case of figure 4, the three curves would need 75, 125 and 175 sample points, respectively, but plotting the three simultaneously requires 2625 samples, instead. So, the first component is repeated 35 times, 21 times the second, and 15 times the third. This repetition will add substantially to the plotting time but, if the final result is written to a raster format like PNG, there will be no increase on the size of the final file. If we use a vector format like EPS or SVG, however, the file size will also increase substantially.

We can avoid the unnecessary repetition by turning to a two-pass method. In the first pass, each curve is created independently in gnuplot, and its points are saved in a file using a set terminal table output mode. The second pass combines the points from all the previous files into a single design, that is saved in whatever raster or vector format seems appropriate. Instead of providing an example of this technique, we will use the idea for our final and most ambitious project.

IV. A mini-language for combining an arbitrary number of spirograph-like patterns

All the techniques developed in the previous section can be made more accessible if we design a simple way of describing a plot and we create the tool for translating the description to the appropriate gnuplot instructions. The perfect translation tool would hide the details of the gnuplot syntax from the user while maintaining an appropriate degree of flexibility.

We have written an experimental translator (See/download the translator) in awk for rapid prototyping and easy experimentation. We are going to describe the language currently recognized. The following notation will be used. Fixed names are written in boldface. Variable data appears in italica, enclosed within square brackets, [], if the data is optional. The data type is indicated by the suffix of the variable name: var.s (a string sequence); var.i (an integer); var.r (a real value); var.c (a complex value in gnuplot notation, i.e., {real_part,imaginary_part}); var.re and var.ce (a real or complex expression, like pi*{0,1}/12). Missing values are forbidden within the integer, real and complex data and expressions.

The instructions currently implemented in our translation script are:

PROJECT projectname.s
The project name serves as root for the names of all the files, temporary or final, that the drawing process requires.
Default projectname: tmp.
TERMINAL parameters.s
Select a gnuplot terminal type. Typical selections would be PNG or EPS, but any type accepted by gnuplot will serve.
Default: png size 600,600 x000000 xffffff x404040 ...
CURVE samples.i
Start a new curve. A plot is formed by using one or more curves. Each curve is made by one or more functions. Each curve is computed independently and written to a temporary file. All curves are plotted together at the end to form the final image. The default number of sample points (2001) can be changed independently for each curve. Some special function types (like TROCHOID) may take control of this and ignore the samples value. The general form of a curve is:
z(t) = \sum_{k=1}^N z_k(t)
where t is the independent parameter and z_k(t) = x_k(t) + i y_k(t) is a complex term contribution to the curve.
ADDTERM LINE z0.ce z1.ce
Add a linear term contribution to the current curve:
z_k(t) = z0 + (z1-z0) t
The line passes through z0 and z1, two arbitrary points in the complex plane. Remember than complex values are entered using the gnuplot notation: {x,y} means x+iy . Missing variables must be avoided within each number.
Add a generalized Archimedes spiral:

z_k(t) = a (2\pi t)^n e^{i2\pi t}

Default: n=1.
Add an equiangular spiral:

z_k(t) = a e^{t/\tan{b}} e^{i2\pi t}.

Maximize the number of spiral rolls by choosing b close to (+/-)π.
ADDTERM TROCHOID R.re r.re p.re [samples.i]
Add a trochoid term:

z_k(t) = (R-r) e^{i2\pi t} + p e^{-i2\pi(R-r)t/r}.

If samples is given, the number of sampling points and the number of curve rollings is internally computed.
ADDTERM WHEEL a.re n.re s.re
Add a Farris rolling wheel term:

z_k(t) = a e^{i2\pi (nt+s)}

where a is the wheel radius, n the rolling frequency, i.e. the number of rolls when t goes from 0 to 1, and s determines the initial phase angle. An arbitrary number of Farris wheels can be added in a curve.
STYLE style.s
This order takes control of the gnuplot style used on the current curve and its copies (see the LOOP order below). The style.s must follow the gnuplot syntax. For example: style lt 1 (line type 1 for all copies of the curve), style with points pt -1 (use points instead of lines). The default style is to use lines for the curves, increasing the line number style for each successive curve, including copies.
LOOP var.s var_ini.r var_end.r var_inc.r
Repeat the current curve according to the next implicit loop:
         var = var_ini
         while (var does not reach var_end) do
            # compute and draw a new installment
            # of the current curve
            var = var_ini + (var_inc)
The var.s string can be used as a variable in the definition of the curve (see the examples below). The var_inc.r value can be negative. There is currently a limit of 1000 times for the number of copies produced by this loop.
TRANGE t0.r t1.r
Change the default range for the t parametric variable. Notice that the presence of a trochoid term may take control for t and ignore this input.
Default: t in [0,1].
GFACTORS freal.re fimag.re
Multiplicative factors for the real and imaginary parts of the drawn functions. In other words, the image finally drawn is plot freal*real(z(t)), fimag*imag(z(t)).
Default: freal = fimag = 1.0.
LABEL x.r y.r text.s
Add a gnuplot label at the indicated position. The plot center has the coordinates (0,0). The label is centered on the (x,y) point. The plot can contain any number of labels, but the program makes no attempt to avoid collisions between them.

Example 01 image Example 02 image
(a) (b)
Example 03 image Example 04 image
(c) (d)
Figure 5 Example images created with the help of the SpiroLang mini-language. See the text for a description of the patterns and the actual instructions used to create them. The (d) image has been created using an EPS terminal to employ enhanced text capabilities, but it has been converted to PNG for display here.

Some examples of the above rules in action may help to understand the possibilities. The first example, represented in Fig. 5(a), shows the use of a simple trochoid curve with a small sampling:

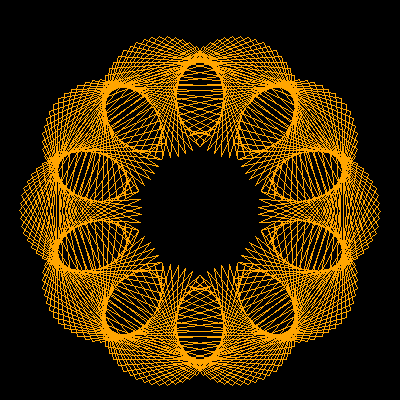

   project example01
   terminal png size 600,600 x000000
   curve 10
      addterm trochoid 100 -49 76

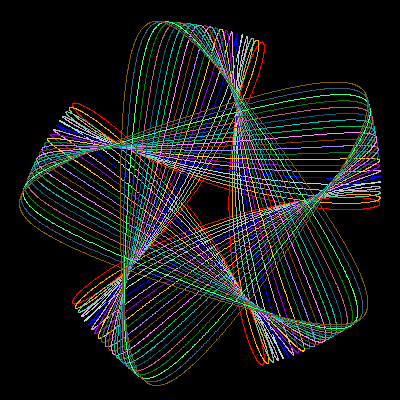

The second example shows the use of a loop instruction to create copies of a curve, applying a little phase rotation and size change to each new copy. See the resulting image in Fig. 5(b):

   project example02
   terminal png size 600,600 x000000
      #style lt 1
      loop kkk 0 20 1
      addterm wheel 4*0.98**kkk  -3   kkk/200.
      addterm wheel 5*1.02**kkk   2   kkk/200.

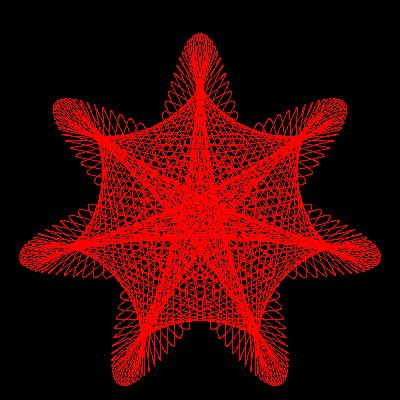

The third image, Fig. 5(c), corresponds to a multiple copy version of three Farris wheels:

   project example03
   terminal png size 600,600 x000000
      style lt 1
      loop kkk 0 20 1
      addterm wheel 4  -5   -kkk/60.
      addterm wheel 3   2    kkk/60.
      addterm wheel 2   9    0.

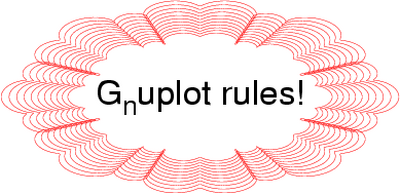

Our last example shows a decoration around some text. The decoration was designed by starting with a large Farris wheel and adding two other much smaller wheels, always maintaining an 8-fold symmetry. The use of gfactors provides an easy way to stretch an otherwise round motif.

 project example04 terminal postscript eps enhanced color
"Helvetica" 48 gfactors 1.4 0.7 curve style lt 1 loop kkk 0 10 1 addterm wheel
200*0.96**kkk   1   0.  addterm wheel  10*0.96**kkk   9   0.  addterm wheel
9*0.96**kkk  23   0.  label 0 0 G_nuplot rules!

V. Final remarks

We should not end this report without mentioning, at least, some of the excellent Java applets that can be found on the Internet (Paramo2004, Little2001, Little1997, Garg, Ziring2000). A well conceived GUI can be of great help in the interactive exploration of a designated subset of the vast Spirograph parametric space. It is not the only approach, however. A custom mini-language can give access to an arbitrarily large parametric space and hide the dirty details of code generation. The gnuplot engine has been used for years to produce professional quality plots. Some of its drawbacks, like the lack of true loop mechanisms, can be eliminated with some ingenuity or by embedding the engine within a more general programming tool.


The author thanks the Spanish Ministerio de Educación y Ciencia for financial support under project BQU2003-06553.


  1. T. Williams, L. Hecking, and H.-B. Broeker, gnuplot, version 4 (2004), based on the original version released by Thomas Williams and Colin Kelley in 1986. http://www.gnuplot.info/
  2. E. W. Weisstein, Hypotrochoid, from MathWorld-A Wolfram Web Resource (last accessed 2006-09-06). http://mathworld.wolfram.com/Hypotrochoid.html
  3. C. Pérez, L'ancien regime. Part 2: The heritage of the classical wristwatch, (2000, last accessed 2006-09-06). http://people.timezone.com/msandler/Articles/CarlosClassical/Classical.html
  4. RGM watches company, Engine-turning ``guilloche'', (last accessed 2006-09-06). http://www.rgmwatches.com/engine.html
  5. F. Farris, Wheels on Wheels on Wheels - Surprising Symmetry, in Mathematics Magazine 69 (1996) 185-189,
  6. A. Páramo Fonseca, La gran belleza de las trocoides, (2004, last accessed 2006-09-30). http://temasmatematicos.uniandes.edu.co/Trocoides/paginas/introduccion.htm
  7. D. Little, Spirograph, (2001, last accessed 2006-09-30). http://www.math.psu.edu/dlittle/java/parametricequations/spirograph/index.html
  8. D. Little, Spirograph v1.0, (1997, last accessed 2006-09-30). http://www.math.psu.edu/dlittle/java/parametricequations/spirograph/SpiroGraph1.0/index.html
  9. A. Garg, Spirograph, (last accessed 2006-09-30). http://www.wordsmith.org/anu/java/spirograph.html
  10. N. Ziring, Spiro applet version 1.0, (2000, last accessed 2006-09-30). http://cgibin.erols.com/ziring/cgi-bin/spiro.pl/spiro.html

Talkback: Discuss this article with The Answer Gang


I'm a Spaniard, living in Oviedo, close to the northern coast of Spain. Married, with a teenager daughter ("hey, dad, this spiro thing is cool!"), I teach Physical Chemistry and do research on Theoretical Chemistry for a living. I have programmed on all sort of machines, from the mythical HP41C to the not less mythical Cray X and Y supercomputers (the end of an era left us short of a good crazy machine), for the last 25 years. I was captivated by linux around 1993, when our research group discovered the first Slackware distribution. Our current infrastructure is based on Debian and includes a half-mounted Top500 wannabee shared among many research groups.

On the left: self portrait in front of a mirror (Feb. 2006). Yes, I truly love photography, but I don't like appearing on images myself. Anyway, this self portrait has something that I don't dislike too much. The band on my left hand has disappeared long ago.

Copyright © 2006, Víctor Luaña. Released under the Open Publication license unless otherwise noted in the body of the article. Linux Gazette is not produced, sponsored, or endorsed by its prior host, SSC, Inc.

Published in Issue 133 of Linux Gazette, December 2006

<-- prev | next -->
